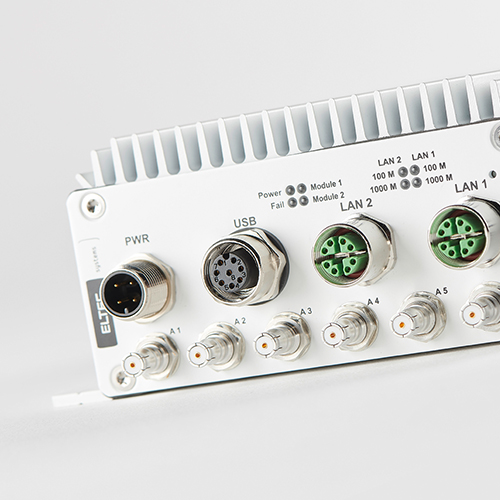

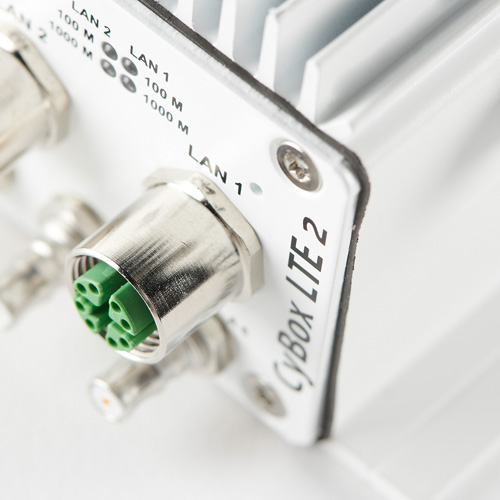

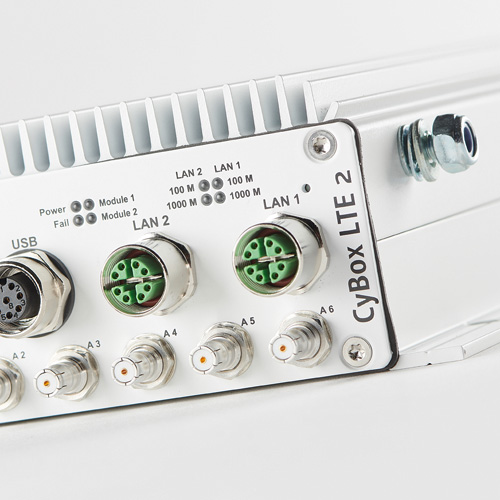

Dual LTE router with LTE Cat 7 or IEEE 802.11ac and performance boost through faster CPU. Compliant with EN 50155.
Faster LTE | Wi-Fi
2 x 1 GbE
1.3 Gbps
The router supports LTE Cat 7 with download speeds up to 300 Mbps and 150 Mbps upload speed. When using two LTE modules, the bandwidth is even doubled to up to 600 Mbps. Four SIM sockets per LTE interface offer multi-provider support or least cost routing.
A faster CPU now enables the full throughput of 1.3 Gbps of the optionally integrated IEEE 802.11ac Wi-Fi module with 3x3 MIMO. The wireless access point is backwards compatible with the Wi-Fi standard IEEE 802.11n for older devices and a longer range.
Dual radio version with 2.4 GHz and 5 GHz standard. 802.11ac uses the 5 GHz band and is backwards compatible with 802.11n with 5 GHz and 2.4 GHz for older end devices.
The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms. As an option, power can be supplied via Power-over-Ethernet (PoE).
For long backbone distances daisy chaining can be applied by bridging two Ethernet interfaces eliminating the costs for external switches.
The optionally available bypass function ensures signal transmission within the backbone even if one of the access points connected in series fails.
Easy-to-use web interface for easy remote configuration of the router, monitoring of settings, and for installing updates. Maintenance and monitoring of the devices via remote control systems are also possible with SNMP and shell scripts.
A configurable firewall protects personal data of client devices against unauthorized access (client isolation) via multi-level client/AP isolation and supports the secure and interference-free data exchange with the Internet. Unauthorized access is prevented both to end devices that have dialed into the same access point and across devices to end devices that are logged into different Westermo Eltec access points.
The LTE router is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.
Stable and secure cellular connections for internet access and train-to-ground communication
Every generation in the same footprint for scalability, long-term availability and easy upgrades
Country-specific LTE/Wi-Fi standards for worldwide use in every type of train
Integrated GPS receiver for vehicle tracking
Intelligent distribution of clients to access points and fair bandwidth allocation
Smooth and loss-free from access point to access point
Highest performance on smallest footprint: Up to 128 clients per access point
Simultaneous, uninterrupted live video streaming for more than 90 clients
Designed and manufactured in Germany
| CYLTE-1055 | CYLTE-1052 | CYLTE-1050 | |
|---|---|---|---|
| 1 x LTE | 2 x LTE | 1 x LTE + 1 x Wi-Fi | |
| LTE Cat 7 with up to 300 Mbps | LTE Cat 7 with up to 300 Mbps | LTE Cat 7 with up to 300 Mbps | |
| - | - | IEEE 802.11ac with up to 1300 Mbps | |
| 1 + 1 GbE | 1 + 1 GbE | 1 + 1 GbE | |
| M12, X-coded | M12, X-coded | M12, X-coded | |
| Dual-Core CPU 1.2 MHz | Dual-Core CPU 1.2 MHz | Dual-Core CPU 1.2 MHz | |
| 1 GB RAM | 1 GB RAM | 1 GB RAM | |
| 128 MB Flash | 128 MB Flash | 128 MB Flash | |
| 24 - 110 VDC | 24 - 110 VDC | 24 - 110 VDC | |
| PoE+ | PoE+ | PoE+ | |
| GNSS | GNSS | GNSS | |
| 3 x SMA | 5 x QLS | 6 x QLS | |
LTE Router
with 2 x LTE Cat 7 and Dual-Core CPU
including all necessary accessories
