Cost-effective, scalable and powerful computing platform with individually configurable interfaces for railway applications. EN 50155 compliant.
A modern, reliable infrastructure forms the basis for modern rail services. Benefit from a modular concept for high-performance computing power that can be individually adapted to your application and enjoy the advantages of a scalable system.

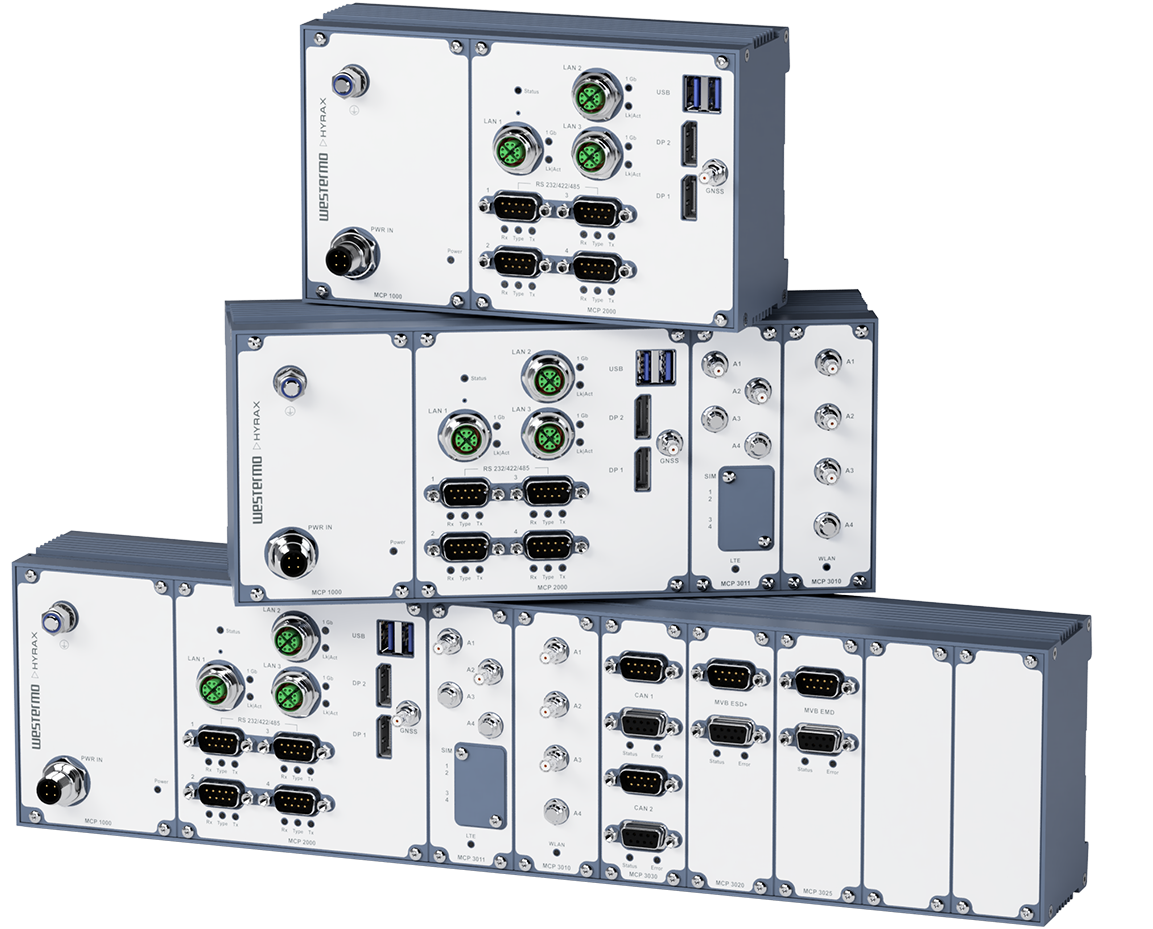

The computing platform PCEye MC-R consists of a CPU unit and power supply and is customer-specific expandable with a variety of digital I/O modules for a wide variety of interfaces. With the ability to add wireless modules such as Wi-Fi or 5G/LTE, the Box PC transforms into a cyber security gateway or a system for cloud computing with monitoring, analysis and data offloading functionality, offering you even more flexibility. Flexible mounting options such as DIN rails, wall-mount and 19" subrack mount allow it to be installed in any environment.
MODULAR
CONFIGURABLE
SCALABLE
Multiple CPU options for scalability and optimal performance

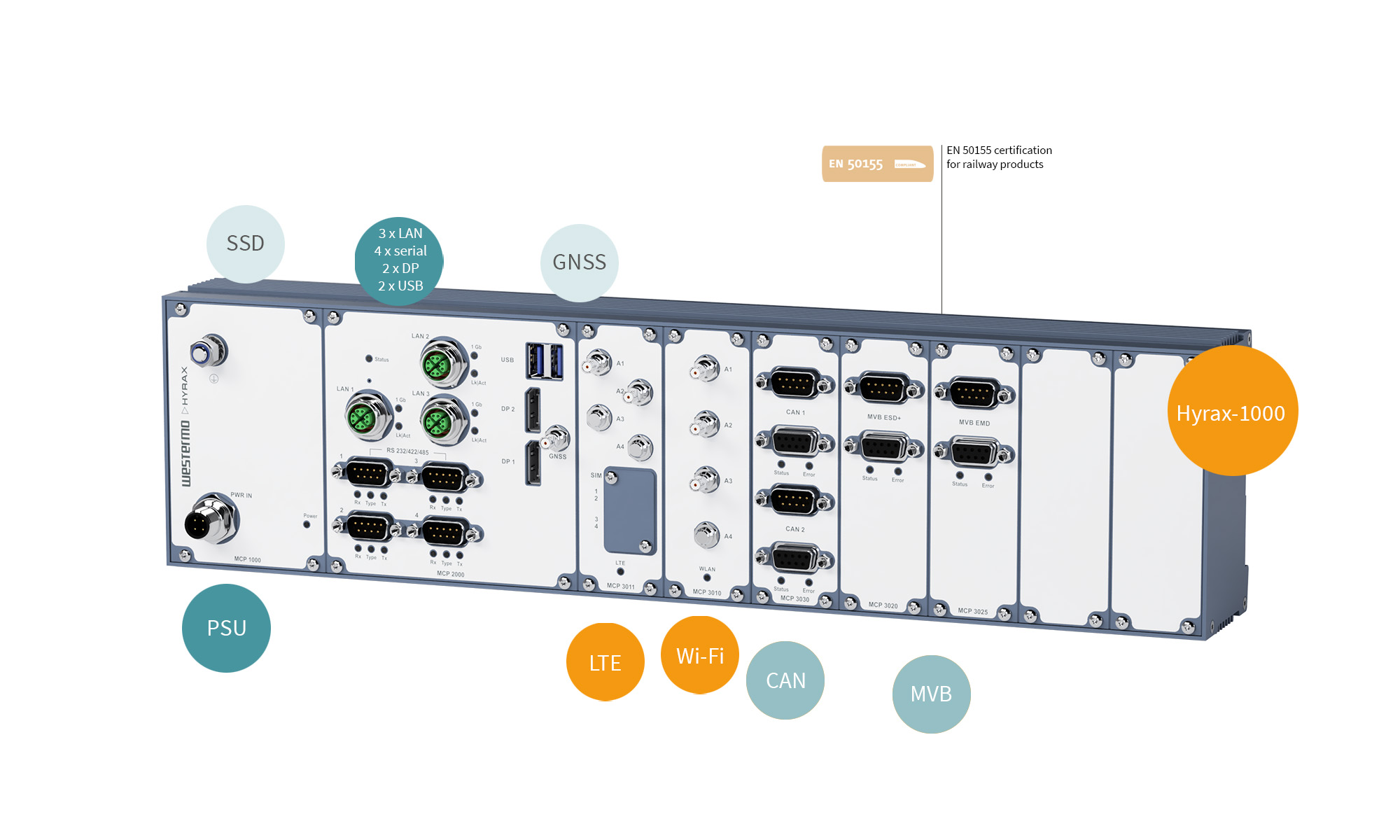

Large selection of interfaces for the acquisition of sensor data
WLAN, 5G/LTE or Gigabit Ethernet for transmitting data
Options for DIN rail, wall-mount and 19" subrack mounting
Railway-compliant, robust design
Designed and manufactured in Germany

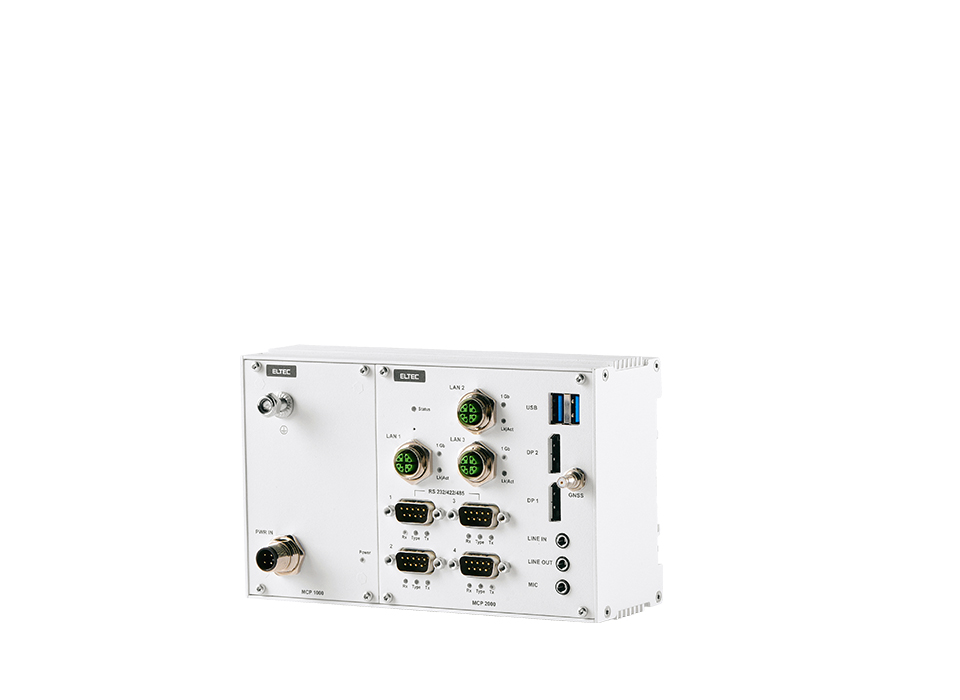

Base model with CPU and power supply

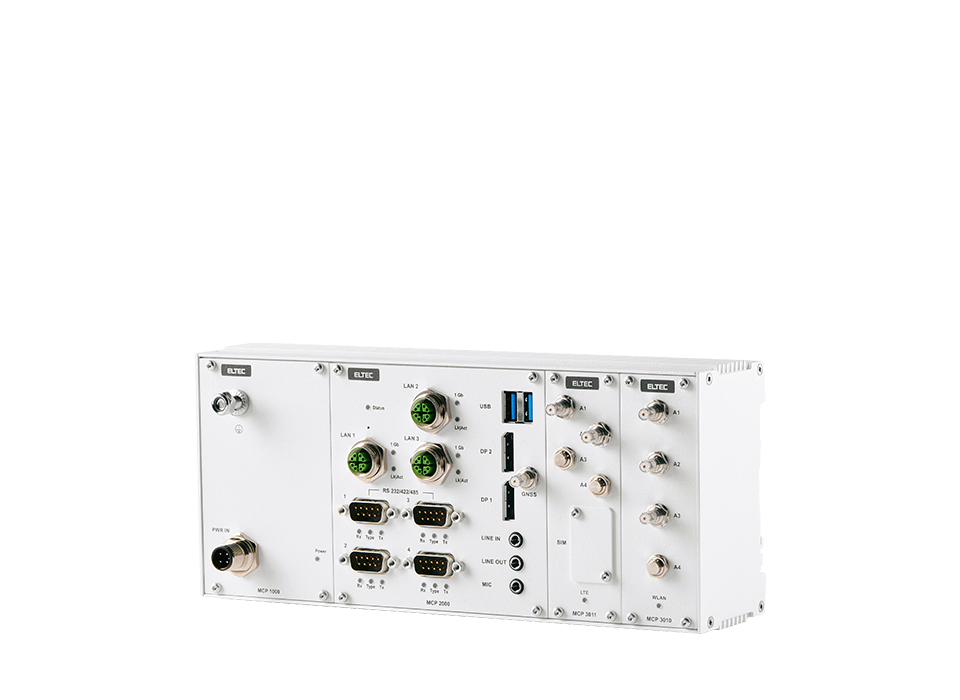

up to 2x I/O modules

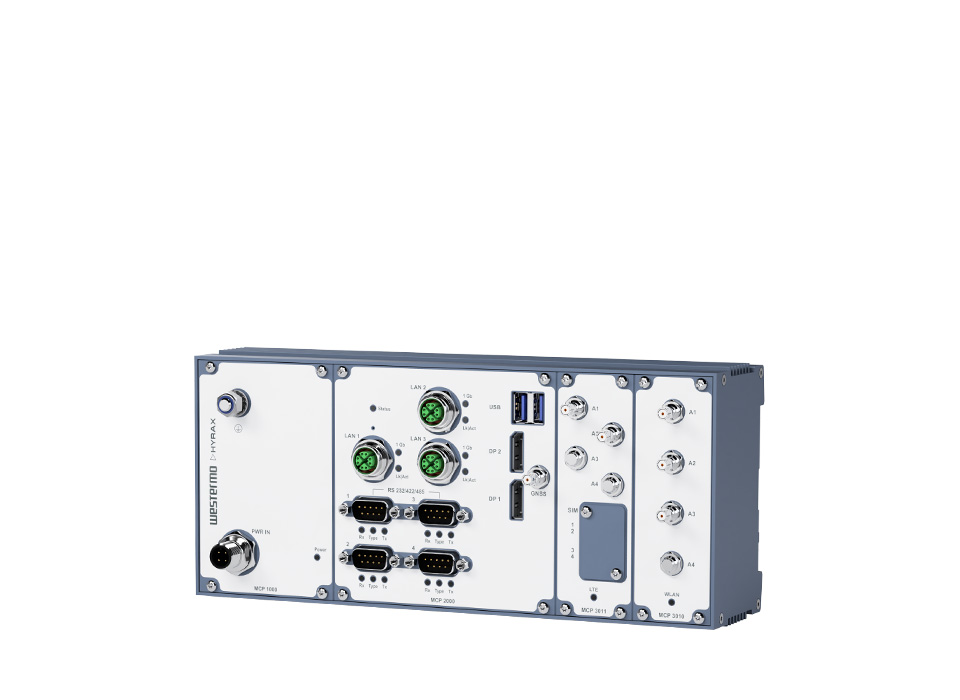

up to 7x I/O modules
ModBlox7 is an open, modular hardware standard for building scalable box PCs. The advantages lie in the cost-effective design of the systems and the flexible interchangeability of the components to tailor the platform to your tasks and shorten the time-to-market.
The specification of the PICMG defines the housing mechanics, the modular functional units and the electrical networking of the units. The standard guarantees the interoperability of the devices for manufacturers as well as interoperability for the users of the Box PC, while combining the advantages of modular systems and highly integrated cost-sensitive Box PC solutions.
